| 最大射程: | 800A~1200A | 保管温度: | -40 - 125 |
|---|---|---|---|
| ゼロ出力: | 2.5V | 感受性の間違い: | ±1% |
| 比例的誤差: | 0.5% | 帯域幅: | 30 |
| ハイライト: | 30kHz Current Measurement Sensor,1200A Current Measurement Sensor |
||

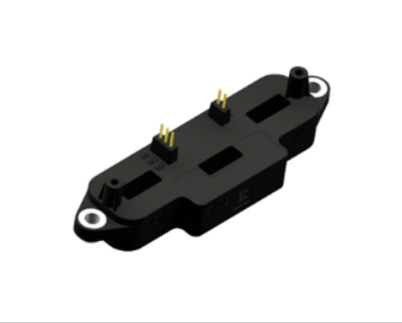

NACA.XXXQ-S6 / VA Current Transducers
Product description
NACA xxxq-s6 / VA Series triple current sensor is suitable for accurate isolation measurement of AC, DC and pulse current. The primary side and secondary side are completely insulated during measurement.
Product Info
| performance requirement | ||||||
| Parameter name | Symbol | Unit | Parameter name | condition | ||
| minimum value | Typical value | Maximum | ||||
| Electrical parameters | ||||||
| Maximum range | IP | A | 800A~1200A | For more details, please contact CRRC | ||
| Storage temperature | TS | ℃ | -40 | 125 | ||
| supply voltage | UC | V | 4.75 | 5 | 5.25 | |
| Output voltage (linear) | Vout | V | Vout=(Uc/5)·(V0+G·Ip) | @UC | ||
| sensitivity | G | mV/A | 2000/Ip | @UC=5V | ||
| Zero output | VO | V | 2.5 | @UC=5V | ||
| Current consumption | IC | mA | 39 | 45 | @ UC=5V,No load on Vout | |
| Load resistance | RL | KΩ | 4.7 | 10 | ||
| Load capacitance | CL | nF | 4.7 | |||
| Output internal resistance | ROUT | Ω | 10 | DC | ||
| performance parameter | ||||||
| Zero output error | X0 | % | -0.75 | 0.75 | @TA=25℃,@UC=5V | |
| -1 | 1 | @-40℃＜TA＜125℃,@UC=5V | ||||
| Sensitivity error | εG | % | ±1 | @TA=25℃,@UC=5V | ||
| ±2 | @-40℃＜TA＜125℃,@UC=5V | |||||
| Electric zero shift | VOE | mV | ±4 | |||
| Magnetic zero shift | VOM | mV | ±3 | |||
| Proportional error | ɛR | % | 0.5 | |||
| Linearity error | εL | % | -1 | 1 | of full range | |
| response time | tr | μs | 7 | |||
| bandwidth | BW | kHz | 30 | @-3dB | ||
| phase difference | ∆φ | ° | -4 | @DC to 1kHz | ||
| Dimensional drawing |
| Series size |
 |
